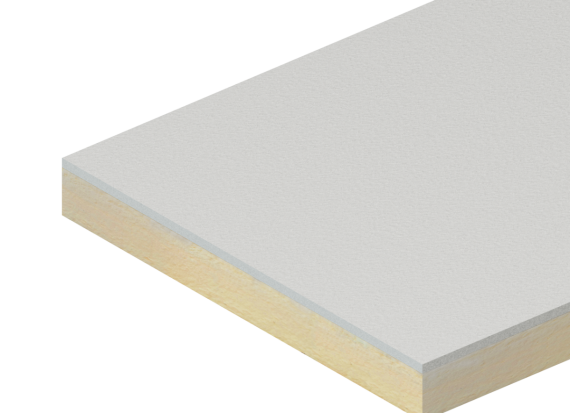

EcoTherm Eco-Liner

The 2 in 1 insulated plasterboard.

Similarly to other Ecotherm materials, the Ecotherm Eco-Liner is a fibre-free rigid polyisocyanurate (PIR) insulation, although what makes the Eco-liner different is that it is bonded to a 12.5mm tapered edge gypsum plasterboard (using gypsum bonding adhesive). Henceforth, the Eco-liner 2 in 1 both dry lines and insulates, minimalising installation time. The Ecotherm insulated plasterboard comes in a vast range of thicknesses from 25-70mm (+12.5mm plasterboard) fitting to almost all building specifications.

Performance:

The Eco-Liner has a thermal conductivity of 0.022 W/mk (insulation) and 0.19 W/mk (plasterboard) as well as having a compressive strength of 14kpa when tested at 10% compression to BS EN 826: 2013.





Download Specification

Composite insulated panel comprising a fibre free polyisocyanurate (PIR) insulation core with a bilaminate foil/kraft paper facing on the outer, and bonded to a 12.5mm tapered edge gypsum plasterboard on the inner facing for internal dry lining applications.

Applications

Room side insulation responds quickly to heating systems and applications include upgrading the thermal performance of existing walls, providing a cost effective means of reducing CO2 emissions and for compliance with Building Regulations /Standards. Ideal for:

■ Walls ■ Room-in-the-roof applications
■ Pitched roofs/Cold flat roofs ■ Both new build and renovations

Enquire about this product
